Automatic Print Head Alignment

You need to prepare: a sheet of A4 or Letter-sized plain paper (including recycled paper)*
* Be sure to use paper that is white and clean on both sides.

1.Make sure that the power is turned on.

2.Load a sheet of A4 or Letter-sized plain paper in the Rear Tray.

3.Open the Paper Output Tray gently, and open the Output Tray Extension.

4.Print the print head alignment sheet.
(1) Press the (Maintenance) button repeatedly until u (lowercase "u") appears.

(2) Press the Black or Color button.
The print head alignment sheet will be printed.

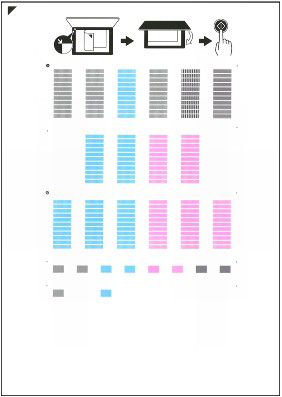

5.Scan the print head alignment sheet to adjust the print head position.
(1) Load the print head alignment sheet on the Platen Glass.
Load the print head alignment sheet WITH THE PRINTED SIDE FACING DOWN and align the mark on the upper left corner of the sheet with the alignment mark .

(2) Close the Document Cover gently, make sure that U (uppercase "U") appears on the LED, then press the Black or Color button.

The machine starts scanning the print head alignment sheet, and the print head position will be adjusted automatically.
When adjusting the print head position is completed, the LED returns to the copy standby mode. Remove the print head alignment sheet on the Platen Glass.

Manual Print Head Alignment

1.Open the printer driver setup window

2.Click Custom Settings on the Maintenance tab
The Custom Settings dialog box opens.

3.Switch head alignment to manual
Check the Align heads manually check box.

4.Transmit the settings
Click Send and when the confirmation message appears, click OK.

5.Click Print Head Alignment on the Maintenance tab
The Start Print Head Alignment dialog box opens.

6.Load paper in the machine
Load three sheets of A4 size or Letter size plain paper into the rear tray.

7.Execute head alignment
Make sure that the machine is on and click Align Print Head.
Follow the instruction in the message.

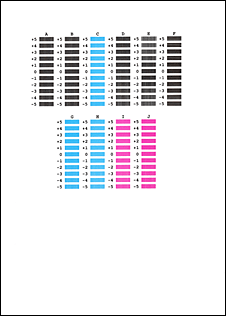

8.Check the printed pattern
Enter the numbers of the patterns with the least amount of streaks in the associated boxes.
Clicking the patterns with the least amount of streaks in the preview window, will automatically set their numbers in the associated boxes.

When you have entered all the necessary values, click OK.

REFERENCE

• If it is difficult to pick the best pattern, pick the setting that produces the least noticeable vertical white streaks.

(A) Less noticeable vertical white streaks
(B) More noticeable vertical white streaks

• If it is difficult to pick the best pattern, pick the setting that produces the least noticeable horizontal white streaks.

(A) Less noticeable horizontal white streaks
(B) More noticeable horizontal white streaks

9.Confirm the displayed message and click OK
The second pattern is printed.

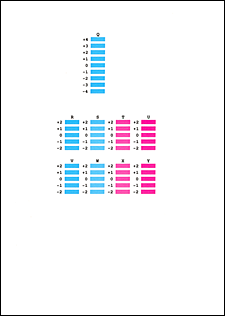

10.Check the printed pattern
Enter the numbers of the patterns with the least amount of streaks in the associated boxes.
Clicking the patterns with the least amount of streaks in the preview window, will automatically set their numbers in the associated boxes.

When you have entered all the necessary values, click OK.

REFERENCE

• If it is difficult to pick the best pattern, pick the setting that produces the least noticeable vertical white streaks.

(A) Less noticeable vertical white streaks
(B) More noticeable vertical white streaks

11.Confirm the displayed message and click OK
The third pattern is printed.

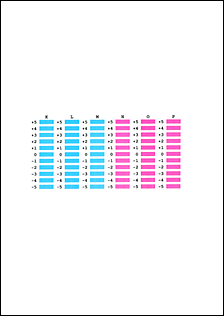

12.Check the printed pattern
Enter the numbers of the patterns with the least noticeable horizontal stripes in the associated boxes.
Clicking the patterns with the least noticeable horizontal stripes in the preview window, will automatically set their numbers in the associated boxes.

When you have entered all the necessary values, click OK.

REFERENCE

• If it is difficult to pick the best pattern, pick the setting that produces the least noticeable horizontal white stripes.

(A) Less noticeable horizontal white stripes
(B) More noticeable horizontal white stripes
