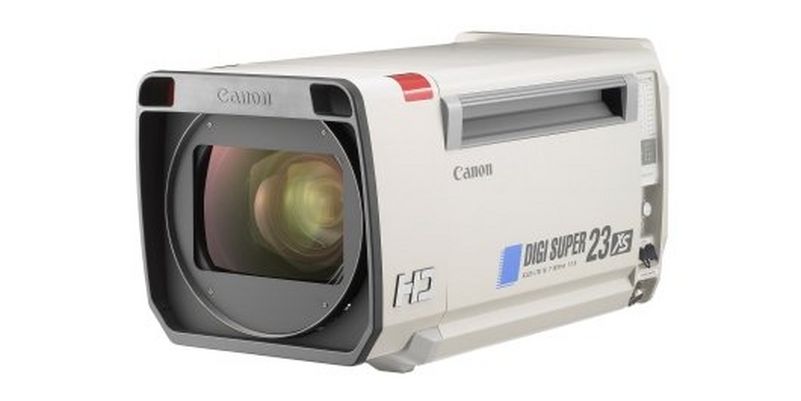

Canon DIGISUPER 23 xs

DIGISUPER 23 xs

The DIGISUPER 23 xs is an affordable Studio Lens, which features the best of contemporary computer-aided design and breakthrough optical technologies for superb HDTV performance.

Benefits

  • Power Optical System
  • Internal focus
  • Precision digital servo system
  • Constant Angle Focusing System; 32-bit CPU
  • Robust ergonomic design
  • Ecological design
  • Crossover technology options; 4-position turret

Detailed Features

Take a more detailed look into the Canon DIGISUPER 23 xs

Power Optical System


Canon’s Power Optical System is designed for unsurpassed studio imaging with pristine results. It includes advanced materials and multilayer coatings and delivers minimal distortion, as well as significantly reduced ghosting and flare. Optional wide attachment also available.

Internal Focus


Internal Focus uses a floating optical system to control chromatic aberrations. It allows operators to achieve wide-angle with reduced distortion and minimises variation of the centre of gravity while focusing.

Precision digital servo system


A digital servo system uses Canon-developed 16-bit optical rotary encoder devices to ensure precision control and repeatability of zoom and focus settings. The system allows for digital interface to Robotic and Virtual studio systems. 10-bit Iris Compatibility ensures high-resolution iris control.

Constant Angle Focusing System (CAFS)


CAFS uses a 32-bit CPU to eliminate focus "breathing". It calculates focus changes and synchronises the zoom to counteract picture size/angle of view changes when focusing.

Robust ergonomic design


The lens is ergonomically designed to eliminate centre-of-gravity variations with focus movement. Sealed optics offers protection against dust and smoke, while innovative electrical sealing techniques protect against radio interference.

Ecological design


All contemporary Canon lens systems are free of lead and other substances identified as harmful to the environment.

Crossover technology options; 4-position Turret


A crossover system allows use of the associated camera to switch in the optical extender system or change the aspect ratio between 16:9 and 4:3. 4-position turret includes spare switch positions.

Product specification

Find out more about the Canon DIGISUPER 23 xs, its features and what it can do.
