FLATBED CUTTERS

COLOURCUT FB9000

THE FB9000PRO CUTTERS USE ADVANCED DIGITAL CONTOUR CUTTING TECHNOLOGY TO FOLLOW ARTWORK LINES DRAWN IN ADOBE® ILLUSTRATOR® OR CORELDRAW® ENABLING YOU TO CUT AND CREASE ABSOLUTELY ANY SHAPE, ON DEMAND, WITH NO SETUP COSTS AND NO NEW SOFTWARE TO LEARN.
COLOURCUT FB9000

Key Features

Easy set-up and use. No need for dedicated operators/previous knowledge or specialised expertise. Unbox, connect and align feeder to cutter, plug in your PC via ethernet or USB and you’re ready to go!

Cutter:
• The FB9000PRO’s dual tool head contains the latest Vision3 high resolution CCD camera, which reads a printed QR code to automatically retrieve the associated cutting file from the system and eliminating wasted time searching for jobs
• Scanning the corner page SmartMarks also ensures precision registration of every sheet with its digital cut file
Feeder:
• Users can stack up to 2,000 sheets of printed media, even mixed batches for fully unattended operation, thanks to the QR code job identification
• Each sheet is then automatically loaded onto the cutting belt using a highly effective pneumatic feed system
Software:
• Intec’s acclaimed ColorCut Pro software comes as standard
• Features include: Remote Job Library, *SmartColors which allow different tasks and speed modes to be applied to different parts of the cut file and QR code reading which also allows the system to faultlessly identify and cut mixed jobs in the same session

Specifications

Working Area (manual placement) 550mm x 850mm
Working Area (feeder) 480mm x 720mm
Width 2850mm
Depth 1095mm
Height 1035mm
Weight 406.5kg
Max Speed 1,200mm/s
Data Buffer PC / Mac
Feeder Capacity 25kg / 217.42mm
Tooling Twin head (1 x cutter 1 x creaser)
Power Supply - Cutter 220 - 240V / 6.8A / 750W
Power Supply - Vacuum pump 220 - 240V / 4.5A / 750W
Power Supply - Compressor 220 - 240V / 3.6A / 780W

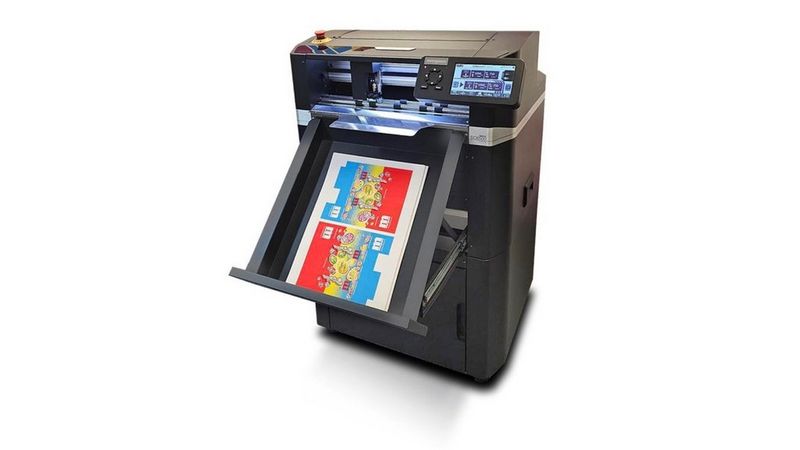

COLOURCUT SC6500

THE SC6500 IS A COMPACT DUAL TOOL DIGITAL CUTTER OFFERING A HIGHLY ADVANCED AND RELIABLE HIGH CAPACITY (1,000 SHEETS) AUTO-SHEET FEEDER TO CUT AND CREASE LIGHT SHEET CARD (UP TO 350MICRON), OR LABELS, TO ANY SHAPE WITHOUT ANY SET UP COSTS.
COLOURCUT SC6500

Key Features

• Digitally cut-through any shape sheet card item – with SmartTag retention – on up to 350 micron media, or kiss-cut sheet labels – all at up to 1060mm/sec
• Digital process means no more costly dies or waiting time
• Auto feeder stacks up to 900 sheets. Up to 340mm x 710mm and custom sizes – with self-centering function and air bladelite separation
• Extendable paper tray
• Integral media storage area
• ColorCut Pro – Production Studio software included
• QR codes and SmartMarks are generated as part of the included ColorCut Pro software plugin. This software integrates with vector artwork created in Adobe® Illustrator® and CorelDRAW®
• QR* code/Job Library retrieves associated cut files – even for mixed job batch sessions or rotated sheets. SmartMark registration delivers incredible accuracy – enabled via included ColorCut Pro software.

Specifications

Working Area (max) 340 x 710mm / 13.4 x 30"
Working Area (min) 330 x 700mm / 12.99" x 27.55"
Width 770mm (820mm inc. screen) / 30.3" (32.3" inc. screen)
Depth 850mm / 33.5"
Height 1230mm / 48.4"
Weight 115kgs / 254lb
Max Speed 1060mm per second / 41.7" per second
Power Supply AC 110-220V 50/60Hz, 0.5A
Connectivity USB (1 connection to PC is required)
Data Buffer External PC
Feeder Capacity 85mm / 3.34" stacker height (Up to 1,000 sheets for auto-sheet feed, based on 80gsm / 21lb bond media)
Tooling Twin head (1 x cutter 1 x creaser)
